Portable reporter transmitter

Specifications Portable reporter transmitter

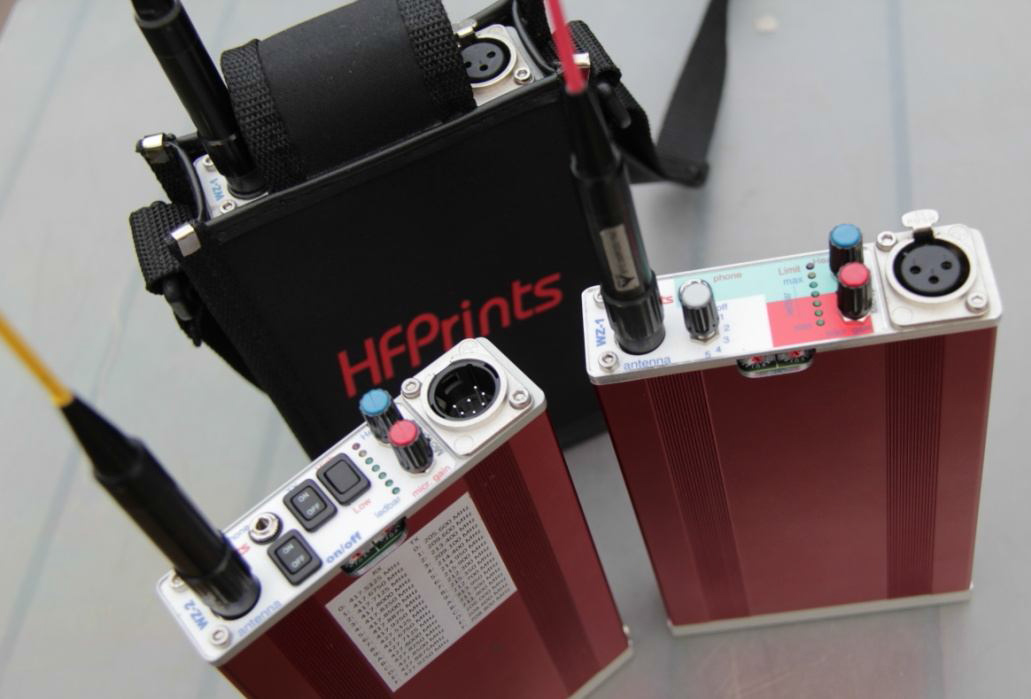

HFprints WZ is a compact full portable transmitter with internal UHF receiver with excellent HF and audio specifications. It’s compact and easy to use design is new to this market. It has been designed to replace the larger size models like Sennheiser Ser 20, but with equivalent audio and RF specifications.

HFprints WZ is on the market for a few years now, to everyone’s satisfaction.

We still consult our clients regularly for feedback and we recently updated our WZ with customer remarks.

Now WZ is also equipped with a removable battery pack, a high RF power mode, a low RF power mode (saves energy), a led bar for audio and battery level and a battery alarm that beeps in the headset when the battery is running out. Next to these new features, there is also a choice in the way the controls on the front panel work, see picture.

WZ’s transmitter is designed for use in the VHF range 174-230MHz, its internal receiver for use in the UHF range, 414-430MHz or 440-470MHz. On request it is possible to change the transmitter to UHF and receiver to VHF.

WZ measurements, (Length x Width x Height) 177mm x 107mm x 30mm, weight 0.9kg

For complete documentation and technical specifications see our datasheet.
